Solar cable

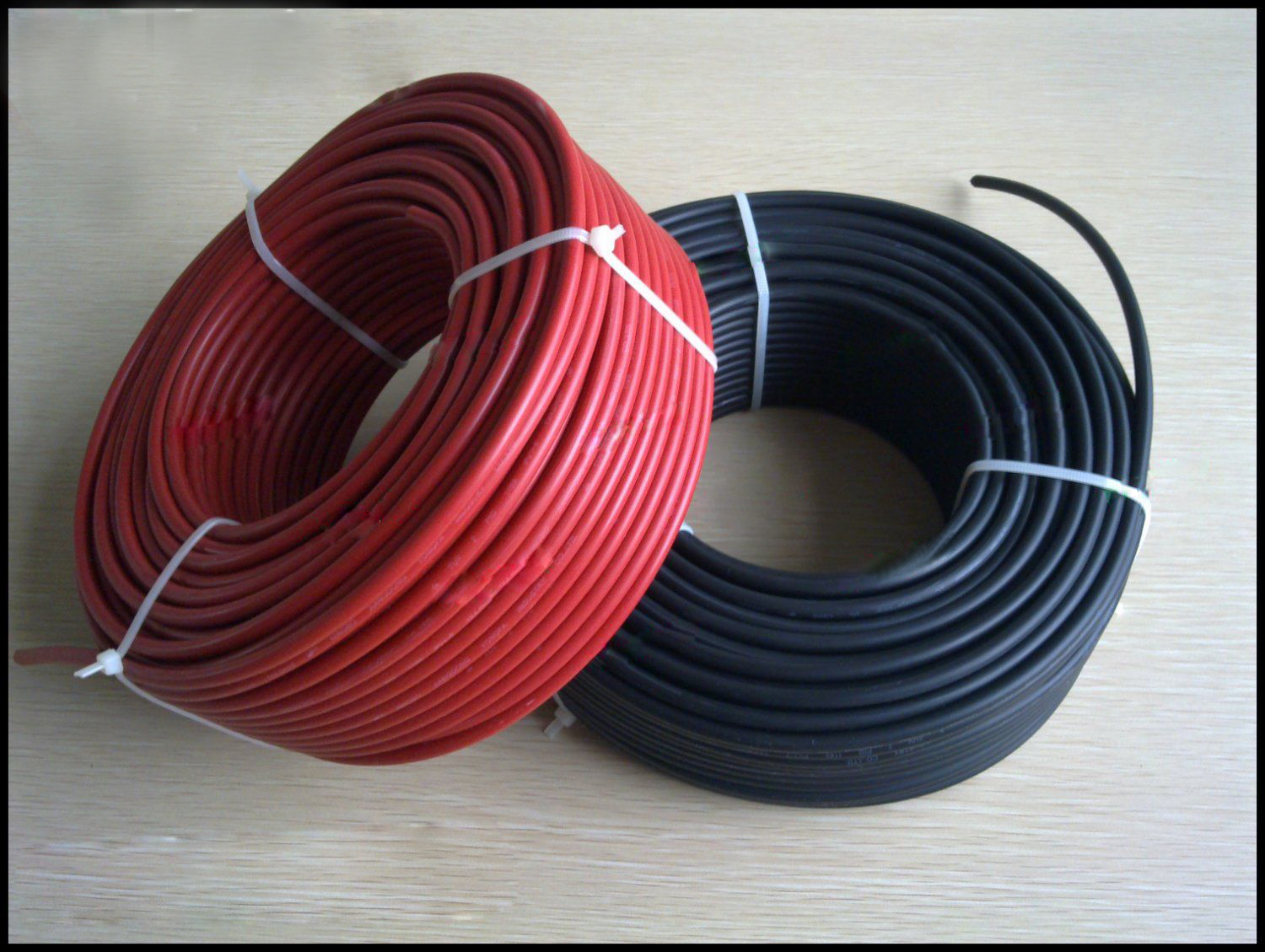

Solar Cable1.5mm2

Produce Description

Name1.5mm2 single core solar cable

Cross Section: 1.5mm2

Rated Current: 30A

Core: NO. 1

Conductor Construction: NO./mm 30/0.25

Conductor Stranded OD.1.37 mm

Insulation min thickness 0.85 mm

Sheath min thickness0.85mm

Cable OD. 4.9±0.1mm

Conductor Resistance20℃):≤13.3 Ω/km

Test Voltage kV/min6.5/5 No breakdown

●Rated Temperature: -40~90

Conductor Max Temperature: 120

●Reference short circuit permissible temperature2005S

Guarantee time:25年( -40~90℃)

Rated Voltage: DC:1.8kv AC U/U: 0.6/1kv

●Working environment temperature ℃: -40~90

Work Voltage AC/DCKV): 0.6~1.0/1.8

●Climate resistance: UV

●Flame retardant: single vertical combustion (IEC60332-1)

●Sunlight resistantHD605/A1

●Ozone resistance test of finished cableEN50396

●SmokeIEC61034EN50268-2

●Halogen acid releaseIEC670754-1 EN50267-2-1

Model: Solar Cable1.5mm2 Price: USD 0.25/meter
Minorder: 3000 meters Supplyability: 100000meters/month
Payment: T/T payment Port: Ningbo port
Certification: CE,CCC,TUV,UL Brand: Leables
Place: Jiaxing City,Zhejiang Pro,China Packaging: according to the request
Zhejiang Lizhou Wire And Cable Co., Ltd., founded in 1991, is a modern high-tech enterprise, integrating R&D, production and sales as one, specializing in wire & cable and related products,which include electrical wire, power cable, control cable, silicone wire, power plug, wire harness, LED connecting wire, and other series varieties

With more than 20 years rapid development, the company become one of the industrial leaders, which covers an area of 50000 square meters, fixed assets of 70 million, annual production capacity of more than 500 million yuan.

The company has 180 outstanding employees, a complete set of advanced equipments in production and QC, first-class working environment, and efficient management system.

Lizhou get through CCC certification and ISO9001:2008 certification, really reaching multinational company’s management level. Lizhou Cable, with unique quality pursuit and dedication spirit, combined with advanced production technology, , has won high reputation in mainland China. Nowadays Lizhou Cable expand the sales in overseas market like Europe, the United States, Southeast Asia, Middle East,etc.

To meet the customers needs well and to lead the cable industry innovation trend will be Lizhou’s constant pursuits.
