Electrical hook-up wire UL1061

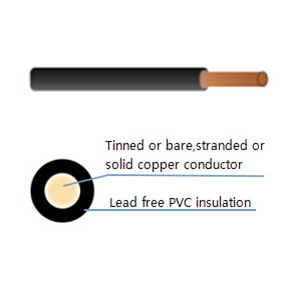

The conductor of UL1061 Hook-up Wire is Tinned or bare, starnded or solid copper , 30-10 AWG, The insulation is Lead free SR-PVC.

Hook-up Wire UL1061

Application:Used for general purpose  internal wiring of electronic and electrical equipment.

Rated temperature: 80°c
Rated voltage:300V
Halogen-free Substitution: UL10368 & UL10921
Reference standard: UL758,UL1581 & CSA C22.2 No.210 Pass UL VW-1 & CSA FT1 vertical

flame test.

Model: Price:
Minorder: Supplyability:
Payment: Port:
Certification: Brand:
Place: Packaging:

Conductor

Insulation

Max. DC Resistance

AWG

No./mm

Diameter

Thickness

Diameter

at 20°c

mm

mm

mm

ohm/km

30

7/0.10

0.3

0.26

0.82

381

28

7/0.127

0.38

0.26

0.9

239

26

7/0.16

0.48

0.26

1

150

24

11/0.16

0.61

0.26

1.15

94.2

22

17/0.16

0.76

0.26

1.28

59.4

20

26/0.16

0.94

0.26

1.46

36.7

18

41/0.16

1.18

0.26

1.7

23.2

16

26/0.254

1.49

0.26

2.02

14.6
